DC Electronic Circuit Protector, Rated input voltage 24 VDC, Number of Outputs: 4 ch
在庫/販売状況
2025/04/28 00:00 情報更新販売状況 | 販売中 |
---|---|
機種区分 | 標準在庫機種 |
在庫状況 | 〇 |
標準価格(税別) | ¥ 15,400 |
詳細情報
Specifications
情報更新:2024/07/25
Input | Rated input voltage | 24 VDC |
---|---|---|
Allowable input voltage variable range | 20 to 30 VDC | |
Rated input current | 40 A | |
Output | Rated output current | 10 A |
Start up time | 250 ms typ. (Initialization time) 50 ms to 5 s (Start-up delay time) | |
Insulation | Dielectric strength | 1 kVAC for 1 min, Cut-off current: 20 mA |
Insulation resistance | 100 MΩ min., at 500 VDC | |
Environment | Vibration resistance | 10 to 55 Hz, 5 G max., 0.42 mm single amplitude in each 3 directions for 2 hours |
Shock resistance | 294 m/s2, 3 times each in 6 directions | |
Ambient temperature (Operating) | -25 to 70 ℃ | |
Ambient temperature (Storage) | -40 to 85 ℃ (with no freezing or condensation) | |
Ambient humidity (Operating) | 5 to 96 % | |
Ambient humidity (Storage) | 5 to 96 % | |
Reliability | MTBF | 135,000 hours min. |
Life expectancy | 10 years min. | |
Construction | Cooling fan | Cooling fan No |
Degree of protection | IP20 by IEC 60529 | |
Weight (Main) | 160 g max. |
Note
Do not use the Inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.

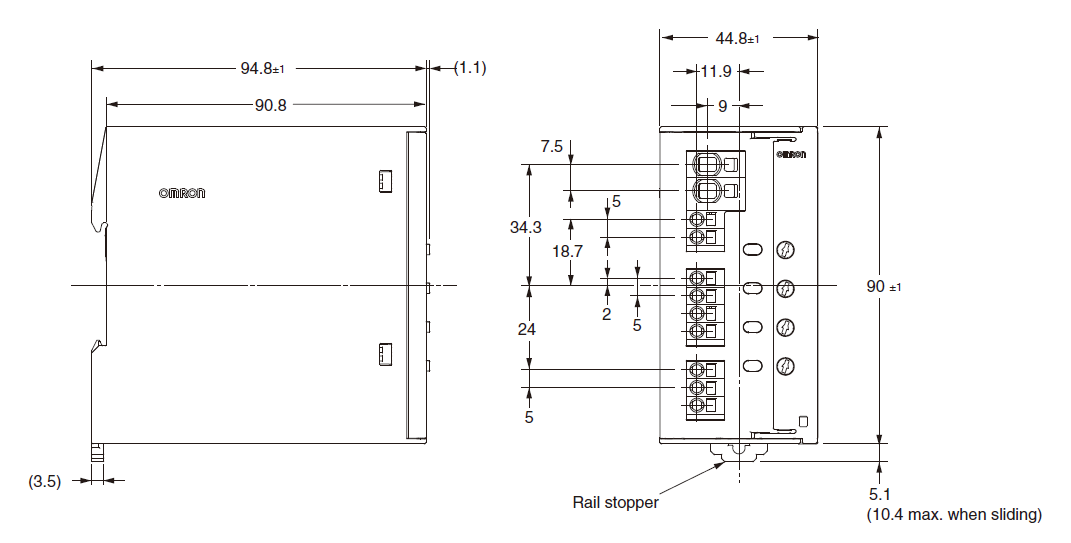

Dimension
情報更新:2024/07/25
Connection diagram
情報更新:2024/07/25

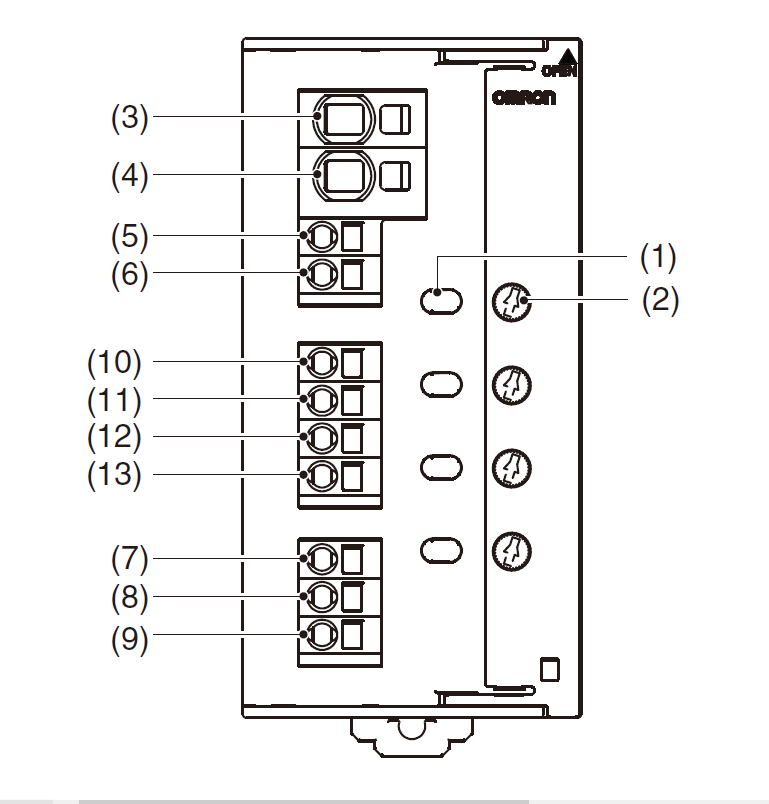

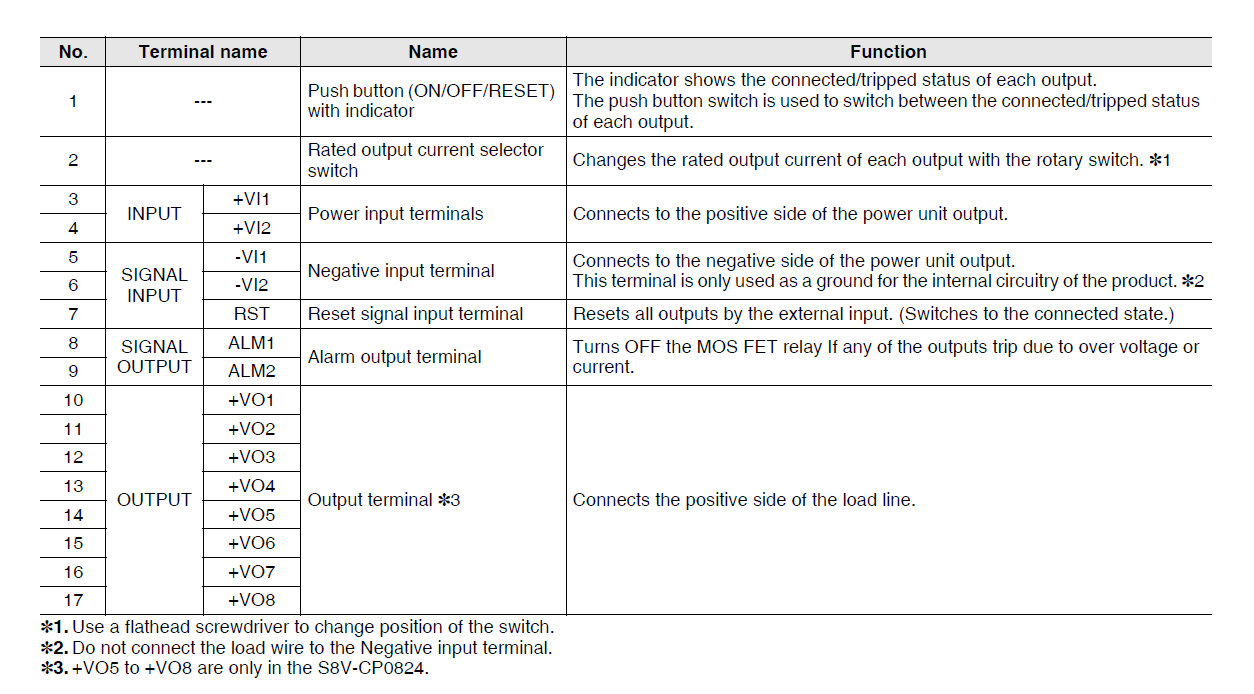

Terminal arrangement

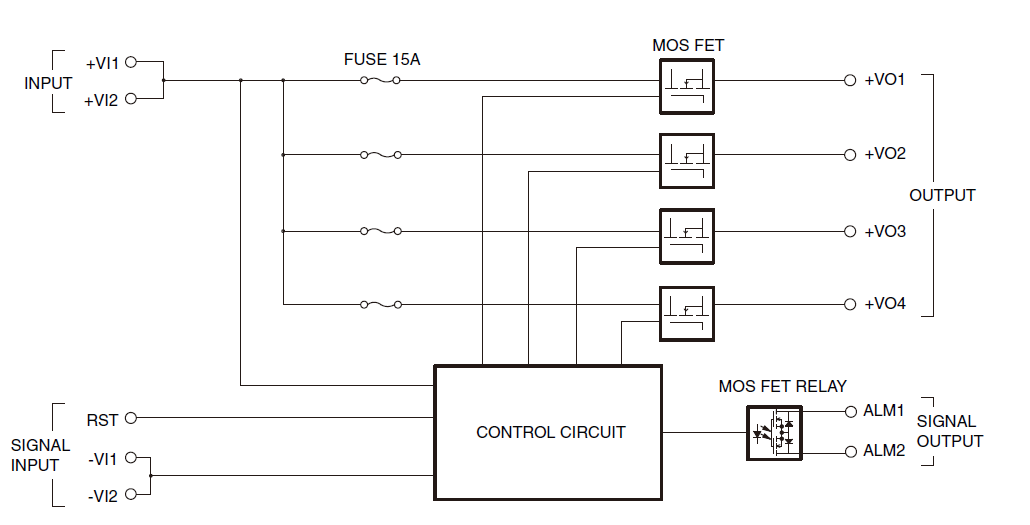

Block diagram

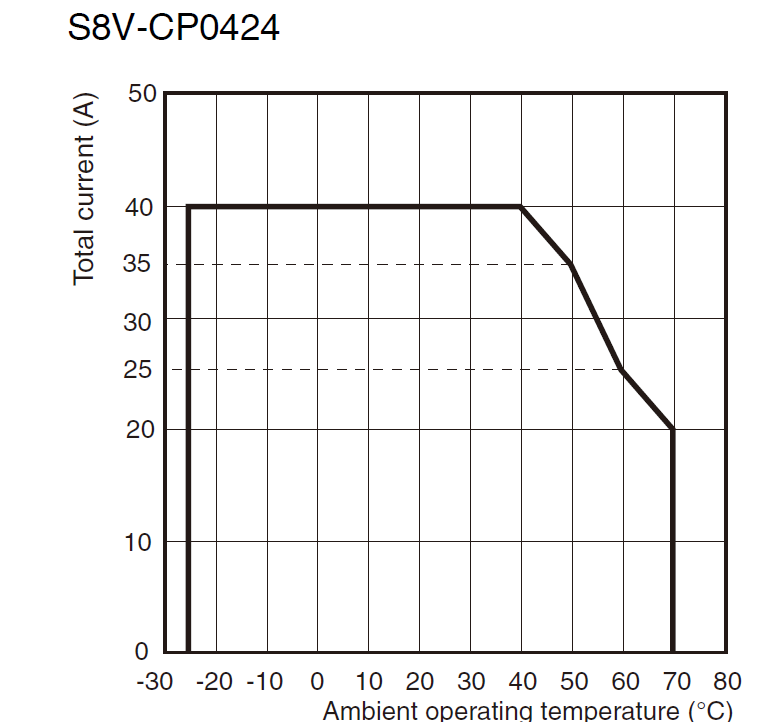

Derating curve
情報更新:2024/07/25
RoHS/REACH対応状況
情報更新:2025/4/16
S8V-CP0424のRoHS対応状況については、営業部門もしくは販売店にお問い合わせください。
規格認証/適合状況
LR型式承認 (イギリス 船舶規格) |
DNV型式承認 (ノルウェー 船舶規格) |
BV型式承認 (フランス 船舶規格) |
KR型式承認 (韓国 船舶規格) |
NK型式承認 (日本 船舶規格) |
ABS型式承認 (アメリカ 船舶規格) |
---|---|---|---|---|---|
No | No | No | No | No | No |
