Smart Proximity Sensor, Amplifier Unit, 1 output, NPN, Connector for sensor communications unit, Pre-wired, 2 m
在庫/販売状況
2025/04/28 00:00 情報更新販売状況 | 販売中 |
---|---|
機種区分 | 受注生産機種 |
在庫状況 | |
標準価格(税別) | ¥ 22,000 |
詳細情報
Ratings/Performance
情報更新:2024/08/08
Sensing head size | 13.8 mm x 37 mm x 83.4 mm |
---|---|
Type | 1 output, Amplifier Unit |
Response time | Super-high-speed mode: 150 µs High-speed mode: 300 µs Standard mode: 1 ms Giga-power mode: 4 ms |
Power supply voltage | 10 to 30 VDC ripple (p-p) 10% included |
Current consumption | at 24 VDC, Normal mode: 45 mA max. at 24 VDC, Eco ON: 35 mA max. at 24 VDC, Eco LO: 40 mA max. |
Power consumption | at 24 VDC, Normal mode: 1080 mW at 24 VDC, Eco ON: 840 mW at 24 VDC, Eco LO: 960 mW |
Control output (Output type) | NPN open collector |
Control output (Switching capacity) | Groups of 1 to 3 units: 100 mA max. (30 VDC max.) at 4 or more units are connected: 20 mA max. (30 VDC max.) |
Control output (Residual voltage) | 1 V max. (Load current Less than 10 mA) 2 V max. (Load current 10 to 100 mA) |
Indicator | OUT indicator (orange), NO/NC indicator (orange), ST indicator (Blue) |
Operation mode | NO/NC selectable |
Sensitivity setting | Smart Tuning or manual adjustment |
Protective circuit | Power supply reverse polarity protection Output short-circuit protection Output reverse polarity protection |
Ambient temperature (Operating) | Groups of 1 to 2 units: 0 to 55 ℃ Groups of 3 to 10 units: 0 to 50 ℃ Groups of 11 to 16 units: 0 to 45 ℃ Groups of 17 to 30 units: 0 to 40 ℃ |
Ambient temperature (Storage) | -30 to 70 ℃ |
Ambient humidity (Operating) | 35 to 85 % |
Ambient humidity (Storage) | 35 to 85 % |
Insulation resistance | 20 MΩ or higher (500 VDC megger) |
Dielectric strength | 1,000 VAC 50/60 Hz 1 min |
Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
Shock resistance | Destruction: 150 m/s2 3 times each in X, Y and Z directions |
Connection method | Connector pre-wired for sensor communications unit (2 m) |
Weight | Package: Approx. 95 g Main: Approx. 45 g |
Material | Case: Polycarbonate (PC) Cover: Polycarbonate (PC) Cable: PVC |
Accessories | Instruction manual |
Dimensions
情報更新:2024/08/08

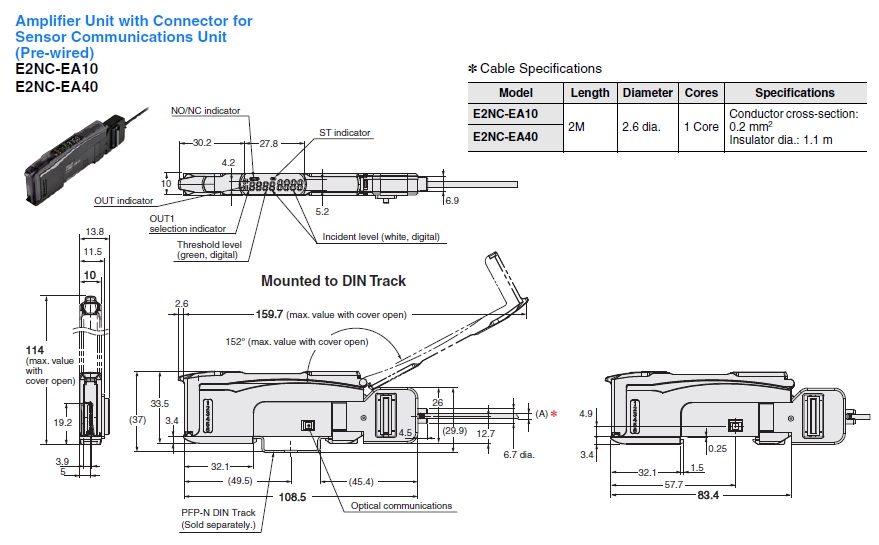

Dimensions
