Photoelectric Sensor with Built-in Amplifier, Convergent-reflective (narrow vision field), Sensing distance: 30 to 100 mm (variable), Light-ON/Dark-ON (selectable), Pre-wired model, 2 m

在庫/販売状況

2025/04/28 00:00 情報更新
販売状況 販売中
機種区分 標準在庫機種
在庫状況
標準価格(税別) ¥ 37,500

詳細情報

Ratings/Performance

情報更新:2024/07/25

ShapeSquare type
Sensing methodConvergent-reflective (narrow vision field)
Sensing distanceWhite paper 10 x 10 mm: 30 to 100 mm
Standard sensing objectTransparent/Opaque
Differential distance1.5 mm max. at 30 mm
10 mm max. at 100 mm
Light sourceRed LED (660 nm)
Power supply voltage12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption40 mA max.
Control outputNo-contact output
80 mA max. (Output current 1.5 to 4 mA)
Residual voltage: 2 V max.
Operation modeLight-ON/Dark-ON selectable
Response timeOperate or reset: 1 ms max.
Sensitivity settingSensitivity adjuster
Ambient illuminanceIncandescent lamp: 3,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature range (Operating)-25 to 55 ℃
Ambient temperature range (Storage)-40 to 70 ℃
Ambient humidity range (Operating)35 to 85 %
Ambient humidity range (Strage)35 to 95 %
Insulation resistance20 MΩ min. (500 VDC megger)
Dielectric strength1000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protectionIEC: IP67
Connection methodPre-wired models (Cable length 2 m)
IndicatorLight indicator (red), Stability indicator (green)
MaterialCase: Zinc diecast
Lens: Polycarbonate
Mounting Bracket: Iron

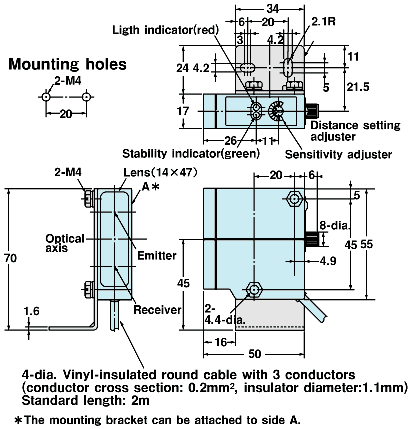

Dimensions

情報更新:2024/07/25

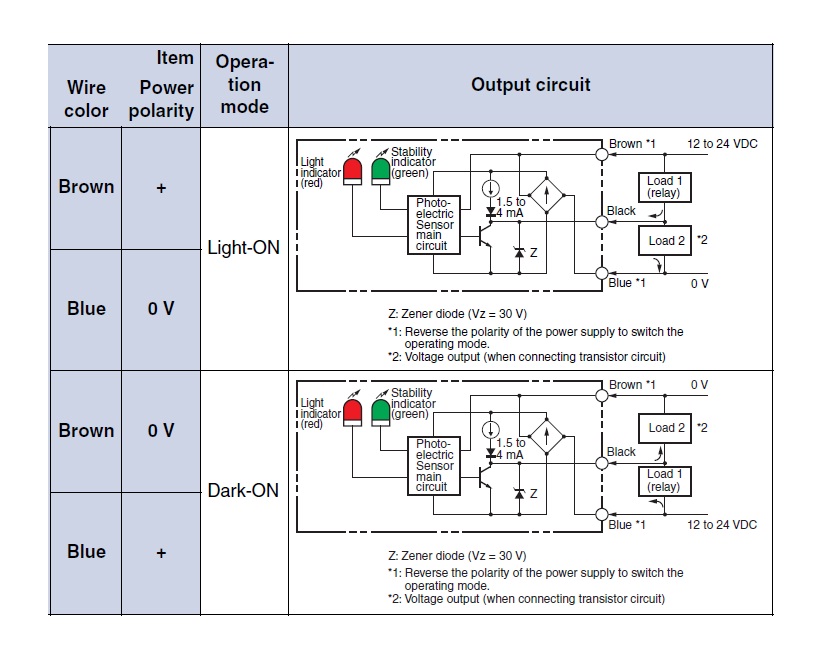

Output circuit diagram

情報更新:2024/07/25

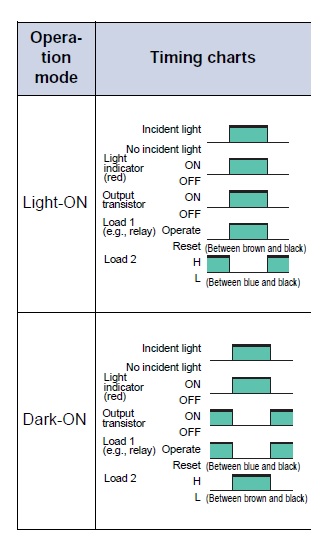

Timing chart

情報更新:2024/07/25

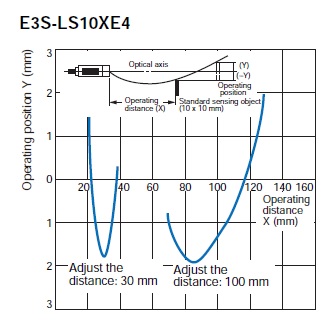

Operating range

情報更新:2024/07/25

Setting distance

情報更新:2024/07/25

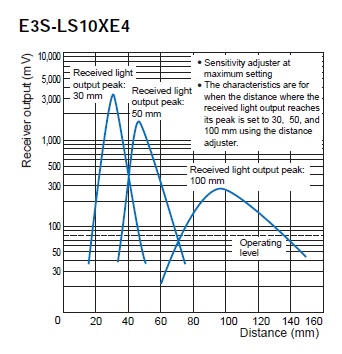

Excess gain ratio vs. setting distance
