商品概要
画像をクリックすると大きくなります
Ultra-long Sensing-distance Proximity Sensor, Column type, Flat-surface mounting, Sensing distance: 100 mm, Pre-wired model, 1 m
在庫/販売状況
2025/04/28 00:00 情報更新販売状況 | 販売中 |
---|---|
機種区分 | 標準在庫機種 |
在庫状況 | 〇 |
標準価格(税別) | ¥ 78,000 |
詳細情報
- Ratings/Performance
- Dimensions
- Output circuit
- Mutual interference
- Effects of surrounding metals
- Characteristic chart
- RoHS/REACH対応状況
- 規格認証/適合状況
Ratings/Performance
情報更新:2024/08/08
Sensing head size | 106 dia. |
---|---|
Type | Cylinder type, Differential coil type |
Power source | DC Three-wires models |
Sensing distance | 100 mm ±10% |
Setting distance | 0 to 80 mm |
Differential distance | 15% max. of sensing distance |
Sensing object | Ferrous metal, Non-ferrous metal |
Standard sensing object | Iron 200 x 200 x 1 mm |
Response time | 100 ms max. |
Power supply voltage | 10 to 30 VDC ripple (p-p) 10% max. |
Operating voltage range | 10 to 30 VDC |
Current consumption | 40 mA max. |
Control output (Output type) | NPN |
Control output (Switching capacity) | 200 mA max. |
Control output (Residual voltage) | 1 V max. |
Indicator | Operation indicator (red) |
Operation mode | NO |
Protective circuit | Reverse polarity protection Surge suppressor |
Ambient temperature (Operating) | -25 to 55 ℃ |
Ambient temperature (Storage) | -25 to 55 ℃ |
Ambient humidity (Operating) | 35 to 95 % |
Ambient humidity (Storage) | 35 to 95 % |
Temperature influence | ±30% max. of sensing distance at 20 ℃ in the temperature range of -10 to 40 ℃ |
Voltage influence | ±5% max. of sensing distance at rated voltage in the rated voltage ±10% range |
Insulation resistance | Between charged parts and the case: 5 MΩ min. (at 500 VDC) |
Dielectric strength | Between charged parts and the case: 500 VAC 50/60 Hz 1 min |
Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
Shock resistance | Destruction: 200 m/s2 10 times each in X, Y, and Z directions |
Degree of protection | IEC: IP66 |
Connection method | Pre-wired models (1 m) |
Weight | Package: Approx. 1500 g |
Material | Case: Aluminum diecast Sensing surface: Epoxy resin |
Accessories | Instruction manual |
Dimensions
情報更新:2024/08/08

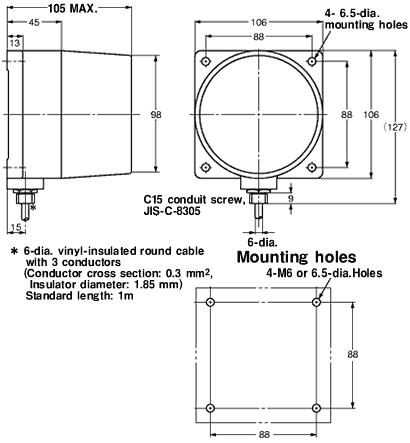

Dimensions

Output circuit
情報更新:2024/08/08

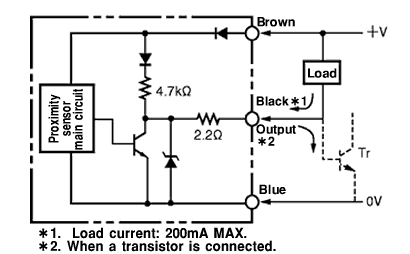

Output circuit

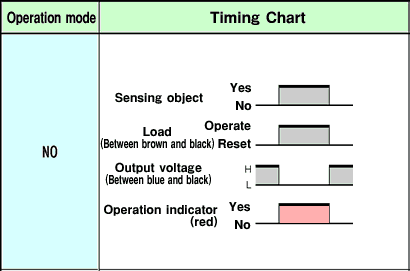

Timing chart

Mutual interference
情報更新:2024/08/08
Mutual interference

A: 300 mm min., B: 300 mm min.
Effects of surrounding metals
情報更新:2024/08/08
Effects of surrounding metals

A: 250 mm min., B: 250 mm min.
Characteristic chart
情報更新:2024/08/08

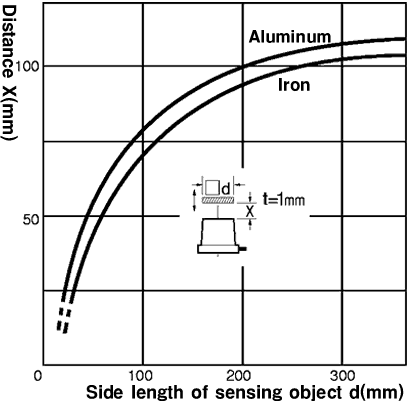

Sensing distance vs. size and material of sensing object

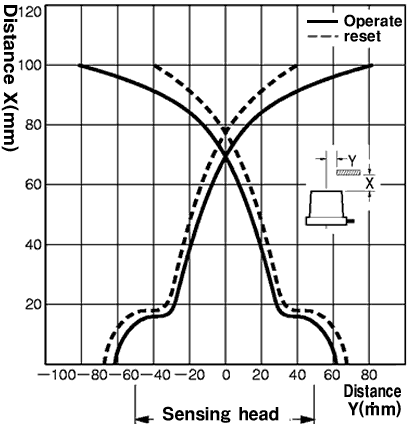

Sensing range

RoHS/REACH対応状況
情報更新:2025/4/16
EU RoHS
対応状況 | 対応予定月 | 非含有証明書 |
---|---|---|
対応済み | ダウンロードはこちら |
中国 RoHS
中国 RoHS表 | ||||||
---|---|---|---|---|---|---|
鉛 (PB) |
水銀 (Hg) |
カドミウム (Cd) |
六価クロム (Cr(VI)) |
ポリ臭化 ビニフェル (PBB) |
ポリ臭化 ジフェニルエーテル (PBDE) |
環境保護 使用期限 |
X | O | O | O | O | O | 10 |
- “対応済み”や非含有の記載がされた商品であっても、流通在庫等で未対応品が混在する可能性があります。
- 非含有品が必要な際は、弊社営業部門もしくは販売店へお問い合わせください。
規格認証/適合状況
UL認証 | CSA認証 | CEマーキング適合 | CCC認証 |
---|---|---|---|
No | No | No | N/A |
LR型式承認 (イギリス 船舶規格) |
DNV型式承認 (ノルウェー 船舶規格) |
BV型式承認 (フランス 船舶規格) |
KR型式承認 (韓国 船舶規格) |
NK型式承認 (日本 船舶規格) |
ABS型式承認 (アメリカ 船舶規格) |
---|---|---|---|---|---|
No | No | No | No | No | No |
