1ch, Thermocouple, K Thermocouple -20.0 to 500.0°C, IO-Link (COM3)
在庫/販売状況
2025/09/12 00:00 情報更新| 販売状況 | 販売中 |
|---|---|
| 機種区分 | 受注生産機種 |
| 在庫状況 | |
| 標準価格(税別) | ¥ 32,000 |
詳細情報
Ratings/Performance
情報更新：2025/09/10
| Rated input voltage | 24 VDC | |
|---|---|---|
| Operating voltage range | 18 to 30 VDC, including ripple (p-p) of 10% | |
| Current consumption | 8 mA | |
| Input | Sampling cycle | Switchable between 50 ms (default) and 10 ms |
| Influence of temperature | (The greater of ±1% of the instruction value or ±4℃) ±1 digits or fewer | |
| Influence of voltage | (The greater of ±1% of the instruction value or ±4℃) ±1 digits or fewer | |
| Installation influence | (The greater of ±1% of the instruction value or ±4℃) ±1 digits or fewer | |
| Influence of EMS | (The greater of ±1% of the instruction value or ±4℃) ±1 digits or fewer | |
| Indication range | Specification: -20 to 500℃/0 to 900°F Indication range: -40.0 to 520.0℃/-40.0 to 940.0°F | |
| Instruction accuracy (ambient temperature: 23℃) | (The greater of ±1% of the instruction value or ±2℃) ±1 digits max. | |
| Vibration resistance | 10 to 55 Hz double amplitude 1.5 mm 2h in each of X, Y, and Z directions | |
| Shock resistance | 500 m/s2 Three times in each of X, Y, and Z directions | |
| Protective circuit | Power supply reverse polarity protection | |
| Ambient operating temperature | -40 to 70 ℃(with no condensation or freezing) | |
| Ambient operating humidity | Relative humidity 85% max. | |
| Storage temperature | -40 to 85 ℃(with no condensation or freezing) | |
| Storage humidity | Relative humidity 85% max. | |
| Installation environment | UL Certification Temperature: 70℃ Indoor Use Altitude: 2000 m max. Pollution Degree: 3 EMC Immunity Level: Zone B | |
| Dimensions | Width | 12 mm |
| Height | 42.6 mm | |
| Depth | 58 mm | |
| Weight | 30 g | |
| Materials | PA | |
| Protection structure (dust-proof, waterproof) | IP67, UL Standard Type 1 Certification, IP30 (When cables are not connected) | |
| Insertion durability | 50 time | |
| Cable length | (from master to convertor): 20 m max. (from convertor to sensor): 30 m max. and 100 Ω max. | |
| Sold separate | Mounting bracket: K3CV-F-1 Main Unit Fixture: K3CV-F-2 Tool for M12 Threaded Connectors: XY2F-0004 | |
| IO-Link device | Package 2024 compatible | |
| Transmission speed | COM3: 230.4 kbps (Fixed) | |
| Device profile | Common Profile, Locator | |
| Minimum cycle time | COM3: 2.0 ms | |
| Data length | 16 bit | |
| Port class | Class A | |
| Process data | 16 bit | |
| Conversion principle | Delta-Sigma method ADC | |
| ADC resolution | 16 bit | |
| Output | Switchable between physical quantity (default) and count value | |
| Moving average filter | 0 (default), 2, 4, 8, 16, 32: Switchable | |
Dimensions
情報更新：2025/09/10
Dimensions drawing
Pin Assignment
情報更新：2025/09/10

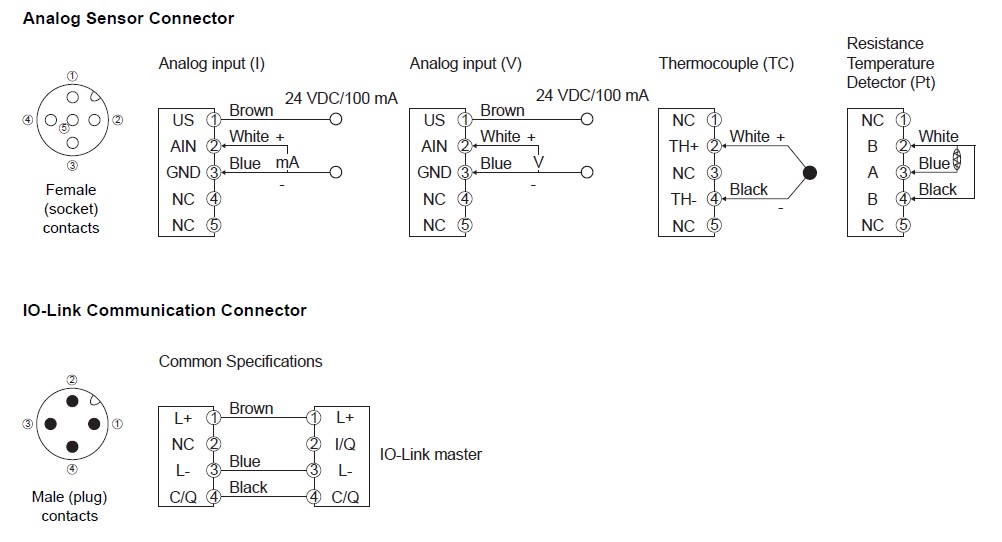

Pin Assignment
