Power MOS FET Relay, Photovoltaic coupler, Applied output load: 1 A at 5 to 240 VAC/1 A at 5 to 100 VDC, Plug-in terminal, Operating indicator, Rated input voltage: 12 VDC
在庫/販売状況
2025/04/28 00:00 情報更新販売状況 | 販売中 |
---|---|
機種区分 | 標準在庫機種 |
在庫状況 | 〇 |
標準価格(税別) | ¥ 1,930 |
詳細情報
- Ratings / Performance
- Outline drawing
- Connection diagra
- Characteristic chart
- RoHS/REACH対応状況
- 規格認証/適合状況
Ratings / Performance
情報更新:2024/07/25
Ratings
Product classification | Relay compatible | |
---|---|---|
Isolation method | Photo volt coupler | |
Zero cross function | None | |
Operating indicator | Equipped | |
Terminal structure | Plug-in terminal | |
Mounting | Socket | |
Input | Rated voltage | 12 VDC |
Operating voltage range | 9.6 to 14.4 VDC | |
Input impedance | 1.1 kΩ±20% | |
Operate voltage | 9.6 V max.DC | |
Release voltage | 1 V min.DC | |
Output | Rated load voltage | 5 to 100 VDC 5 to 240 VAC |
Load voltage range | 3 to 125 VDC 3 to 264 VAC | |
Load current | 100 µA to 1 A | |
Inrush current resistivity | 10 A (10 ms) |
Performance
Operate time | 6 ms max. |
---|---|
Release time | 10 ms max. |
Leakage current | 10 µA max. (at 125 VDC) 100 µA max. (at 200 VAC) |
Insulation resistance | 100 MΩ min. (at 500 VDC) |
Dielectric strength | Between input and output: 2500 VAC 50/60 Hz 1 min |
Vibration resistance | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
Shock resistance | 1000 m/s2 |
Ambient temperature (Operating) | -30 to 85 ℃ (with no freezing or condensation) |
Ambient temperature (Storage) | -30 to 100 ℃ (with no freezing or condensation) |
Ambient humidity (Operating) | 45 to 85 % |
Weight | Approx. 20 g |
Connecting socket | P2RFZ-05/ P2RFZ-05-E/ P2R-05P/ P2R-05A/ P2R-057P/ P2RF-05-PU |
Outline drawing
情報更新:2024/07/25

Connection diagra
情報更新:2024/07/25

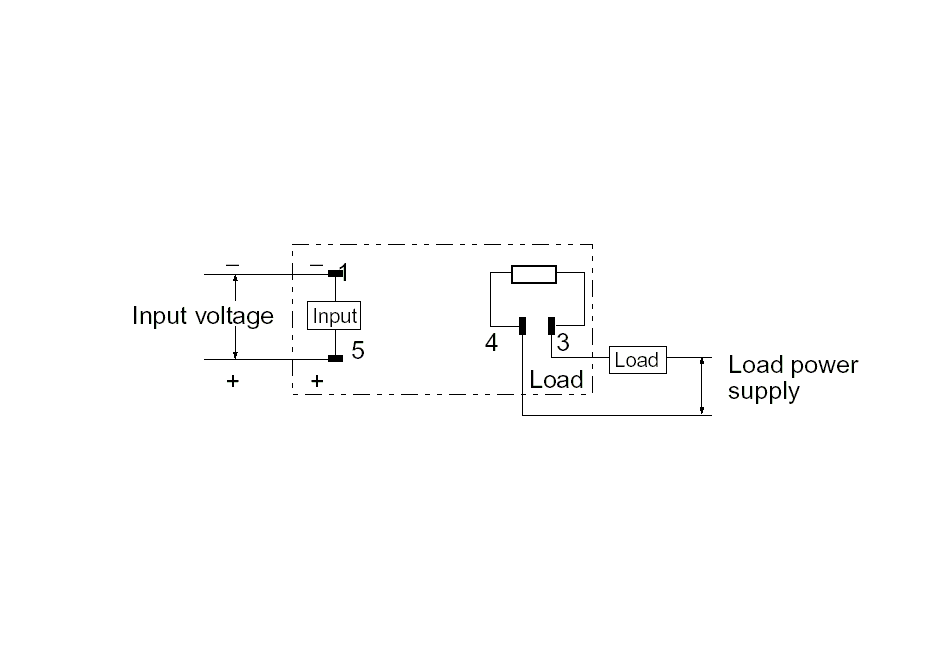

Terminal arrangement and internal connection

Characteristic chart
情報更新:2024/07/25

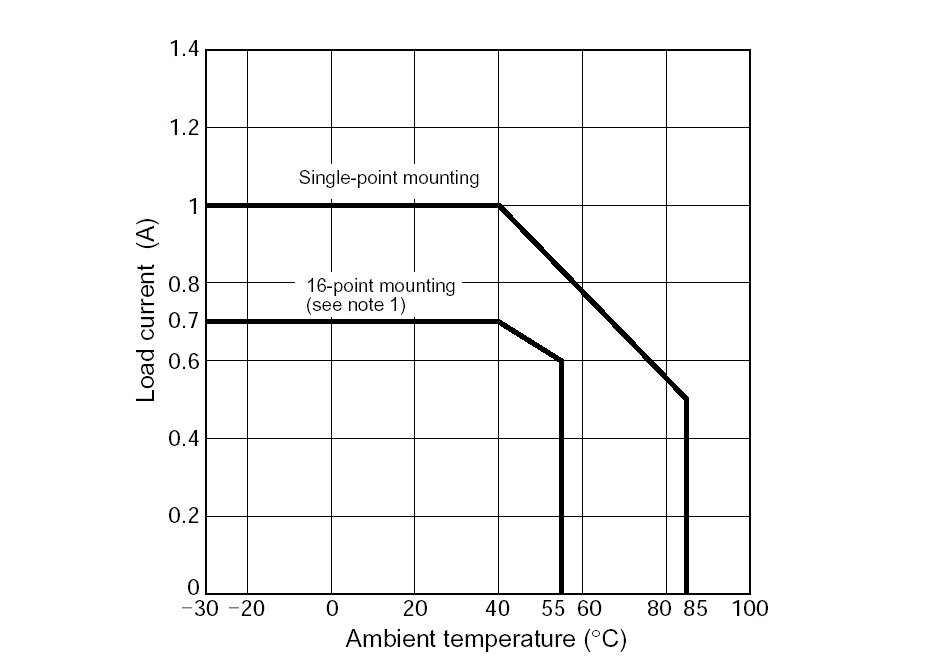

Load current-ambient temperature

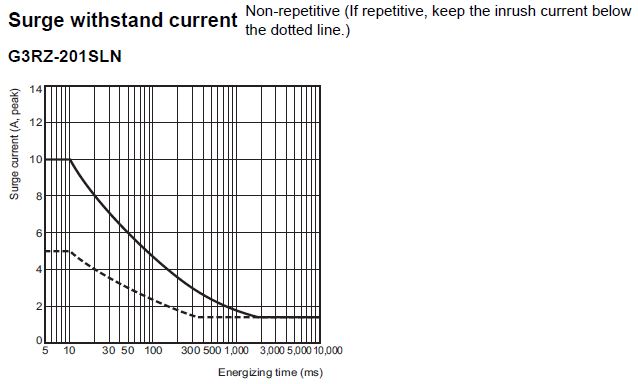

Inrush current resistivity (Non-repetitive)
RoHS/REACH対応状況
情報更新:2025/4/16
EU RoHS
対応状況 | 対応予定月 | 非含有証明書 |
---|---|---|
対応済み | ダウンロードはこちら |
中国 RoHS
中国 RoHS表 | ||||||
---|---|---|---|---|---|---|
鉛 (PB) |
水銀 (Hg) |
カドミウム (Cd) |
六価クロム (Cr(VI)) |
ポリ臭化 ビニフェル (PBB) |
ポリ臭化 ジフェニルエーテル (PBDE) |
環境保護 使用期限 |
X | O | O | O | O | O | 10 |
- “対応済み”や非含有の記載がされた商品であっても、流通在庫等で未対応品が混在する可能性があります。
- 非含有品が必要な際は、弊社営業部門もしくは販売店へお問い合わせください。
規格認証/適合状況
UL認証 | CSA認証 | CEマーキング適合 | CCC認証 |
---|---|---|---|
No | No | No | N/A |
LR型式承認 (イギリス 船舶規格) |
DNV型式承認 (ノルウェー 船舶規格) |
BV型式承認 (フランス 船舶規格) |
KR型式承認 (韓国 船舶規格) |
NK型式承認 (日本 船舶規格) |
ABS型式承認 (アメリカ 船舶規格) |
---|---|---|---|---|---|
No | No | No | No | No | No |
