Photomicrosensor, with sensitivity adjuster, Horizontal type, Reflective type, Sensing distance: 1 to 5 mm, , Dark-ON/Light-ON (selectable), NPN output, Connector model
在庫/販売状況
2025/04/28 00:00 情報更新販売状況 | 販売中・受注終了予定 推奨代替品を探す |
---|---|
受注終了予定 | 2026年9月 |
機種区分 | 標準在庫機種 |
在庫状況 | 〇 |
標準価格(税別) | ¥ 1,620 |
詳細情報
- Ratings/Performance
- Dimensions
- I/O Circuit diagram

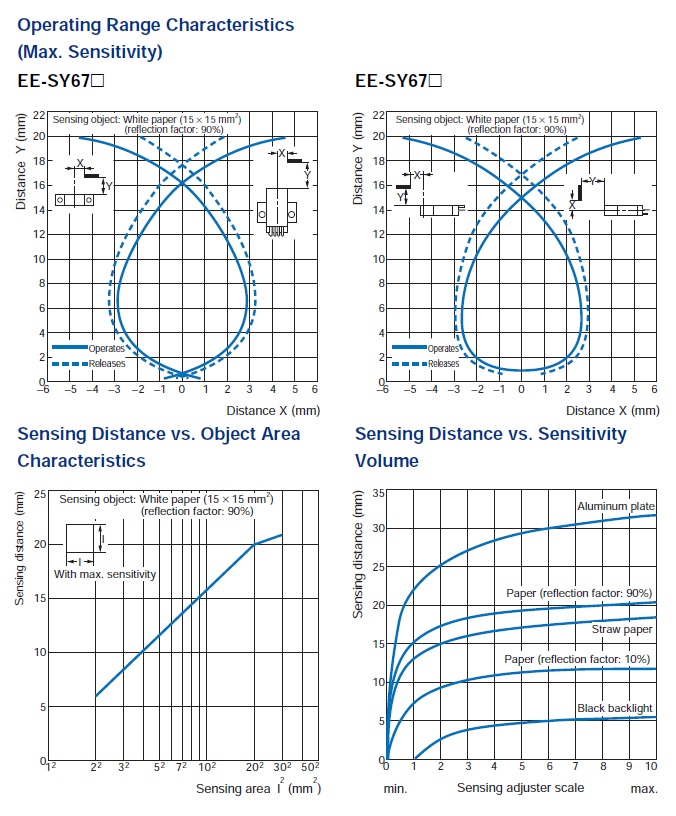

- Engineering data (Reference value)
- RoHS/REACH対応状況
- 規格認証/適合状況
Ratings/Performance
情報更新:2024/07/25
Type | Horizontal type | |
---|---|---|
Luminous method | Non-modulated | |
Sensing method | Reflective | |
Sensing distance | White paper 15 x 15 mm (Reflection factor: 90%): 1 to 5 mm | |
Operation mode | Dark-ON/Light-ON (selectable) | |
Standard sensing object | Transparent or opaque, 15 x 15 mm min. | |
Differential distance elements | Sensing distance of 3 mm, horizontally: 0.5 mm | |
Light source (Peak wavelength) | GaAs infrared LED (940 nm) | |
Indicator | Light indicator (red) | |
Power supply voltage | 5 to 24 VDC ±10% ripple (p-p) 10 % max. | |
Current consumption | 40 mA | |
Control output | Output type | NPN open collector output |
Load power supply voltage | 5 to 24 VDC | |
Load curren | 100 mA max. | |
Residual voltage | at 100 mA load current: 0.8 V max. at 40 mA load current: 0.4 V max. | |
Response frequency elements | 50 Hz min. Average value: 500 Hz | |
Illumination on the surface receiver | Fluorescent light: 1500 lx max. | |
Ambient temperature | Operating: -25 to 55 ℃ Storage: -30 to 80 ℃ | |
Ambient humidity | Operating: 5 to 85 % Storage: 5 to 95 % | |
Vibration resistance | Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) | |
Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions | |
Degree of protection | IP50 | |
Connection method | Connector type (Direct soldering possible) | |
Weight | Approx. 3.5 g (including screwdriver for adjustment) | |
Material | Case: Polybutylene terephthalate (PBT) Emitter/Receiver: Polycarbonate (PC) | |
Accessories | Adjustment Driver |
Dimensions
情報更新:2024/07/25

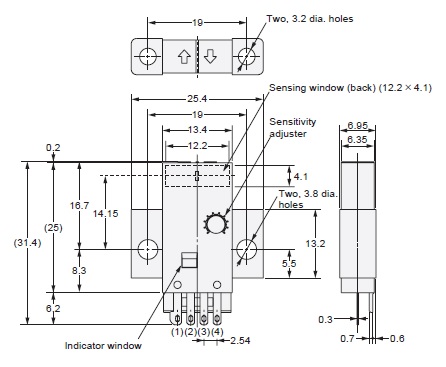

Terminal array

I/O Circuit diagram
情報更新:2024/07/25

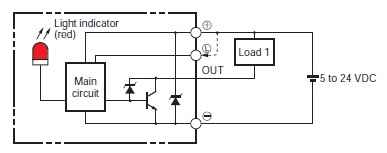

Output circuit

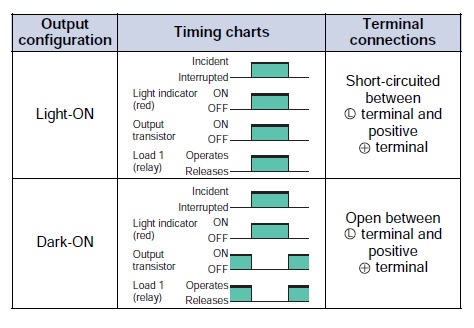

Timing chart
